ASSOCIATION OF LINEAR ELECTRICAL ELEMENTS

INDUCTORS


• Inductors Connected in Series


The value of the equivalent inductance, L_{eq} , of a series connection of N inductances rs is given by:

L_{eq}= L_{1}+L_{2}+...+L_{N}

Choose up to five values for the inductances to compute the value of the equivalent inductor.


L_{1} = H L_{2} = H L_{3} = H L_{4} = H L_{5} = H

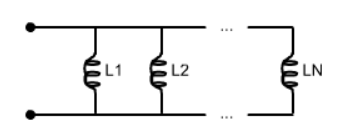

• Inductors Connected in Parallel


The value of the equivalent inductance, L_{eq} , of a series connection of N inductances rs is given by:

L_{eq}= \frac{1}{L_{1}}+\frac{1}{L_{2}}+...+\frac{1}{L_{N}}

Choose up to five values for the inductances to compute the value of the equivalent inductor.


L_{1} = H L_{2} = H L_{3} = H L_{4} = H L_{5} = H
