DIODE CIRCUITS

AC FULL WAVE RECTIFIER

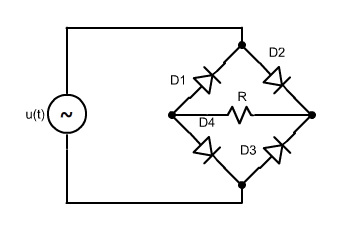

Consider the schematic representation of a circuit with diodes. The circuit has four diodes, one resistor and an AC source.



In this simulator, you will choose a set of parameters to be typed in the boxes that appear below.


Source voltage u(t) =  V      Resistance R = \Omega

Frequence f =  Hz

Saturation current I_{S} = A

Diode constant or emission coefficient (n) =  dimentionless with values from 1 to 2

Thermal voltage V_{T} =  V

Transition time t_{T} =  s

Junction capacitance C_{j0} =  F

Junction coefficient m =  dimentionless with values 0.33 (linearly graded junction) or 0.5 (abrupt junction)

Junction voltage V_0 =  V

Submit for computation clicking “Send”. The result will be:

▪ Diode voltage: x_{1}(t)-x_{2}(t)

▪ Resistor voltage: x_{2}(t)
