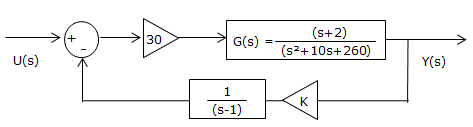

Consider the system represented by the block diagram and transfer function G(s). Its feedback contais a gain K.
From the Root Locus Plot, determine the interval of values K for the system to be stable.
Observe that this exercise refers to the same system of exercise 3 in the Nyquist Stability Criterion Simulator Object. Compare the results obtained using both methods.
