ASSOCIATION OF LINEAR ELECTRICAL ELEMENTS

RESISTORS

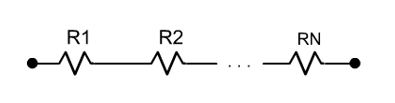

• Resistors Connected in Series

The value of the equivalent resistance, R_{eq} , of a series connection of N resistors is given by:

R_{eq}= R_{1}+R_{2}+...+R_{N}

Choose up to five values for the resistances to compute the values of the equivalent resistor.


R_{1} = Ω   R_{2} = Ω   R_{3} = Ω   R_{4} = Ω    R_{5}= Ω

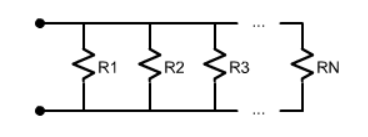

• Resistors Connected in Parallel


The value of the equivalent resistance, R_{eq} , of a series connection of N resistors is given by:

R_{eq}= \frac{1}{R_{1}}+\frac{1}{R_{2}}+...+\frac{1}{R_{N}}

Choose up to five values for the resistances to compute the value of the equivalent resistor.


R_{1} = Ω   R_{2} = Ω   R_{3} = Ω   R_{4} = Ω    R_{5} = Ω
